Collimation Alignment Pattern (CO)

Name & IDSymbolTypical Target UsedDOF and SensitivityDescription
Collimation (CO)Plano ReflectorFine alignment of tiltCreates a collimated beam perpendicular to a specified plano reflective alignment reference.

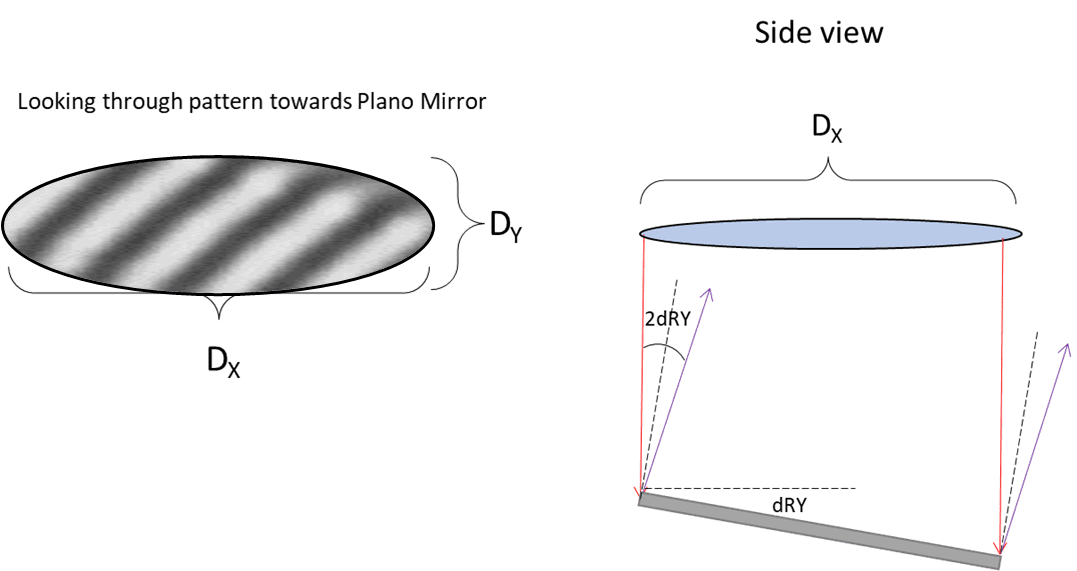

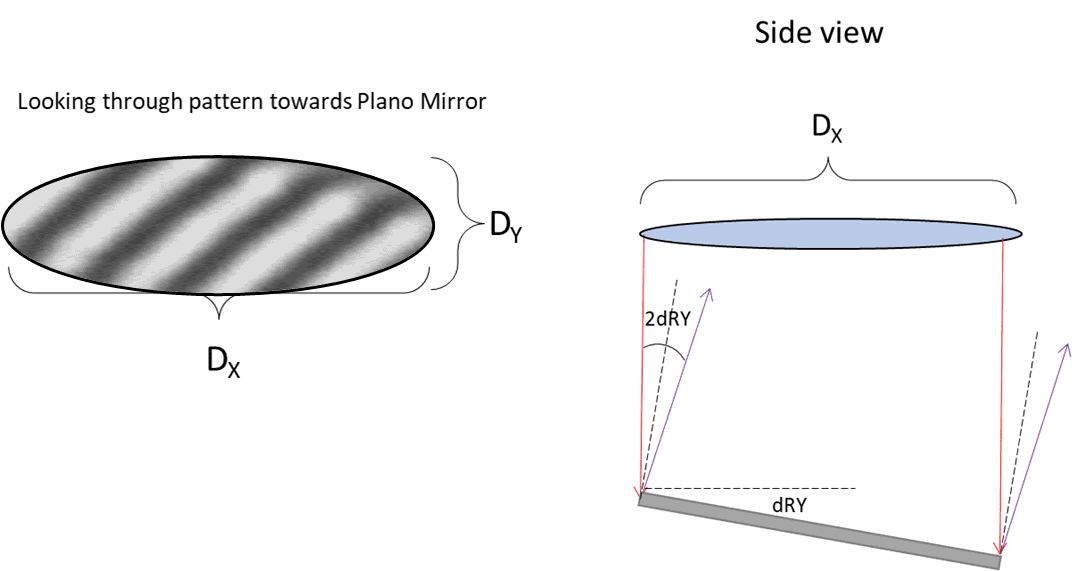

  • Tip/Tilt alignment can be assessed using tilt fringes in Collimation (CO) pattern and plano reflective target.
  • Additionally, CO patterns can be used to quantify wedge in UUT surface w.r.t. back surface datum.
