The Grating Equation

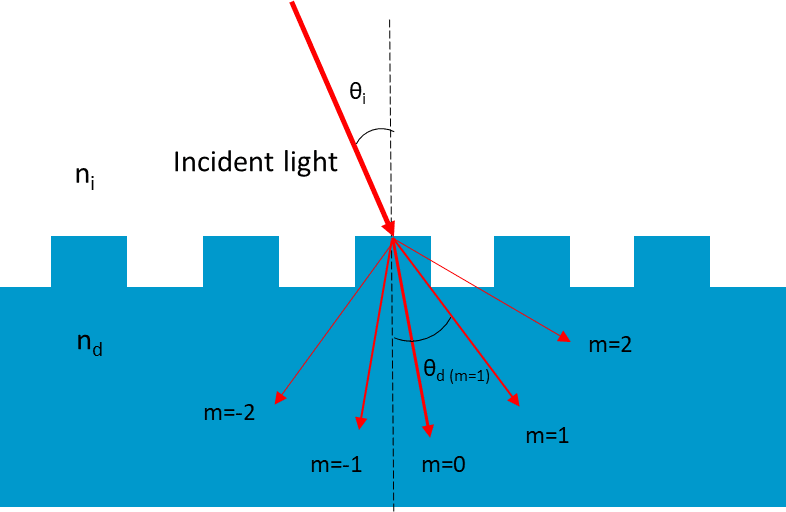

CGHs use diffraction to redirect light.  Diffraction angle of an incident beam can be calculated using the grating equation:



From this equation, we can understand the relationship between different variables and the diffraction angle:

  • Longer wavelengths diffract at larger angles
  • Smaller grating periods diffract light into larger angles
  • Higher diffraction orders are sent into larger angles
