What are fiducial dots and how are they used?

AOM typically includes a set of fiducial dots on its patterns. These dots serve a variety of purposes:

  • They are used to locate a specific position on the CGH null, and associate that with a specific position on the test optic.
  • Additionally, fiducials can be used to line up two maps, such as a CGH substrate transmitted error map and a test optic measurement map, prior to subtracting one from another.
  • Properly placed fiducials can also resolve ambiguity in map orientation.

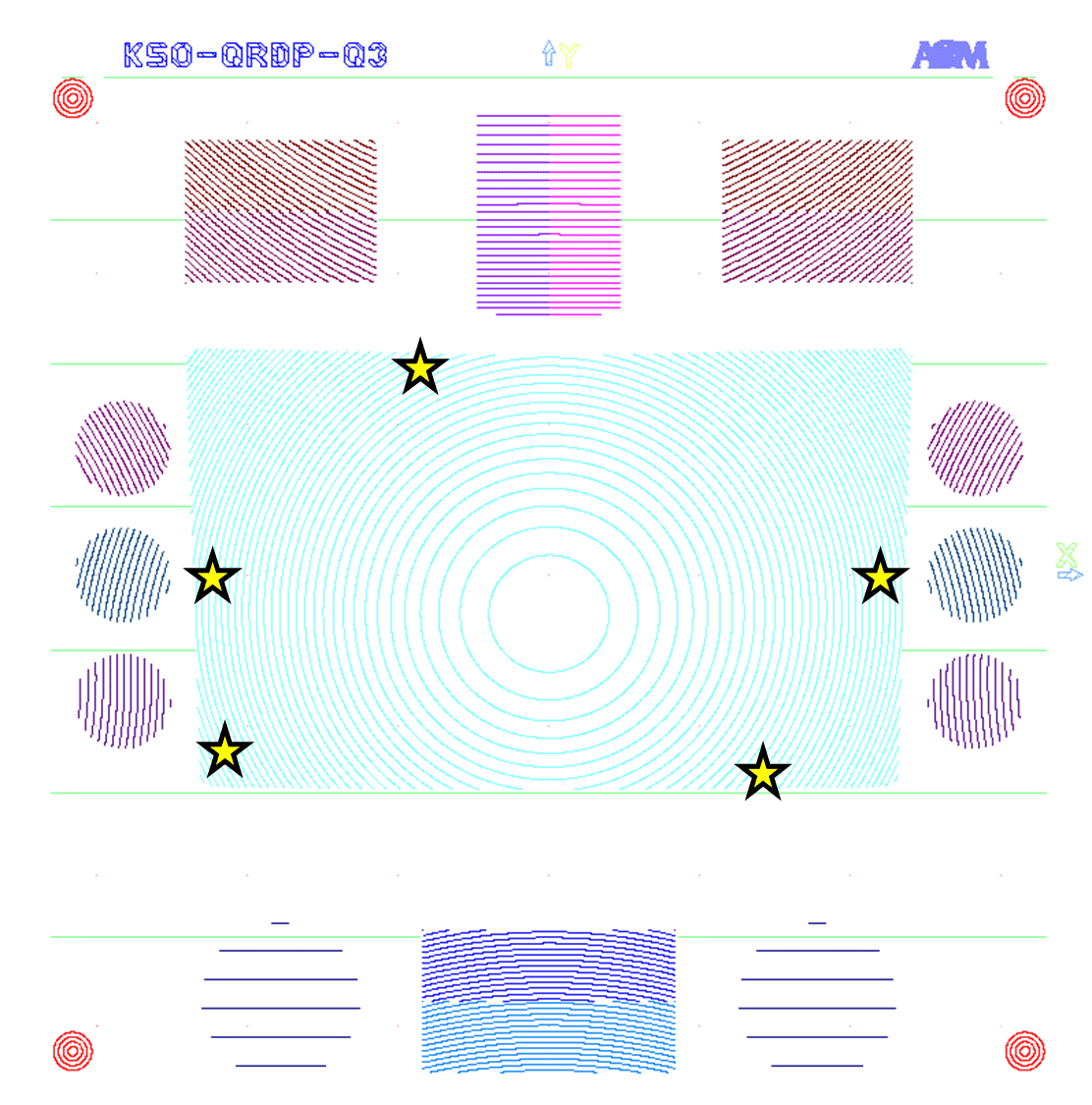

Fiducial dots in CGH pattern

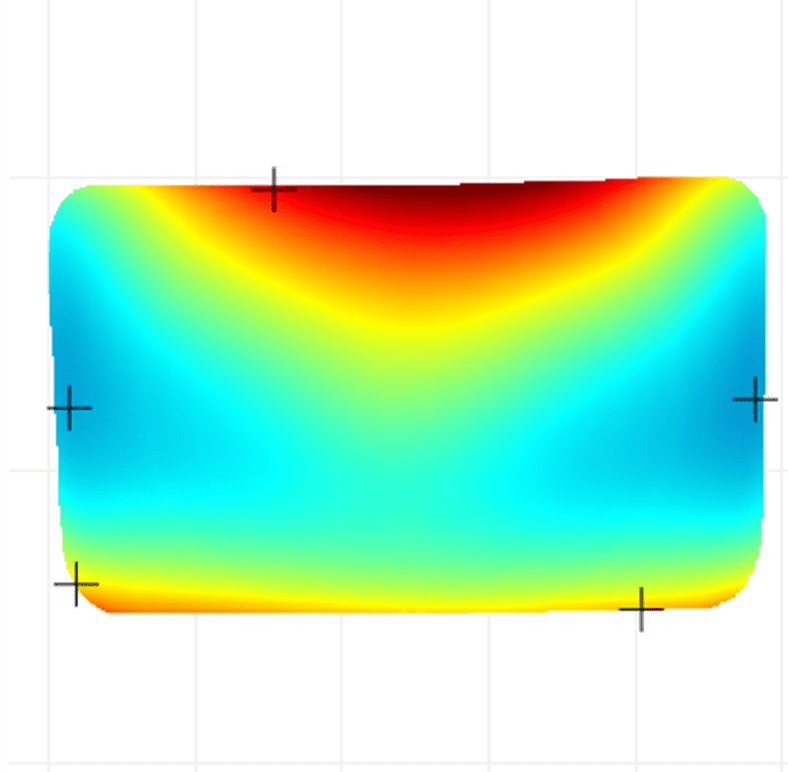

Fiducial dots marked in measurement

Fiducial dots are utilized in Morpheus™: a software solution that can automatically subtract CGH substrate error, perform mapping correction, and more!
